AUTOMATIC SOAP CUTTERS

The AUTOMATIC SOAP CUTTERS EPC-60 and EPC-120 were developed to cut extruded soap bar in automatic way. The machines assemble an Electronic Encoder to measure the soap length and gives the signal to PLC to cut the continuous extruded soap bar, into soap bars with the set length. The Soap Cutting Machines EPC-60 and ECP-120 are studied to change the length of the cut soap bars during the production, without to stop the machine.

The soap cutting blade and the pneumatic cylinder are assembled on the same group that moves with the same speed of the extruded soap bar, to assure an accurate soap vertical cut.

The Soap Cutter EPC-120 assembles a belt conveyor with adjustable speed.

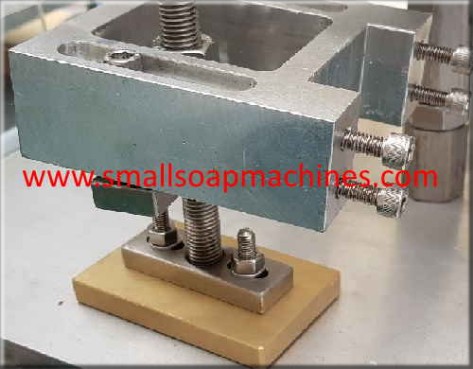

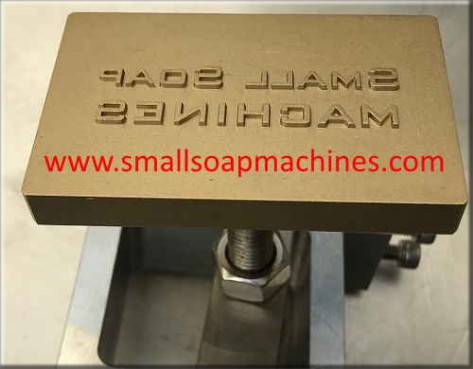

OPTIONAL: Embossing Group with a customized insert to print the Customer Logo or written on the upper face of the cut soap bar.

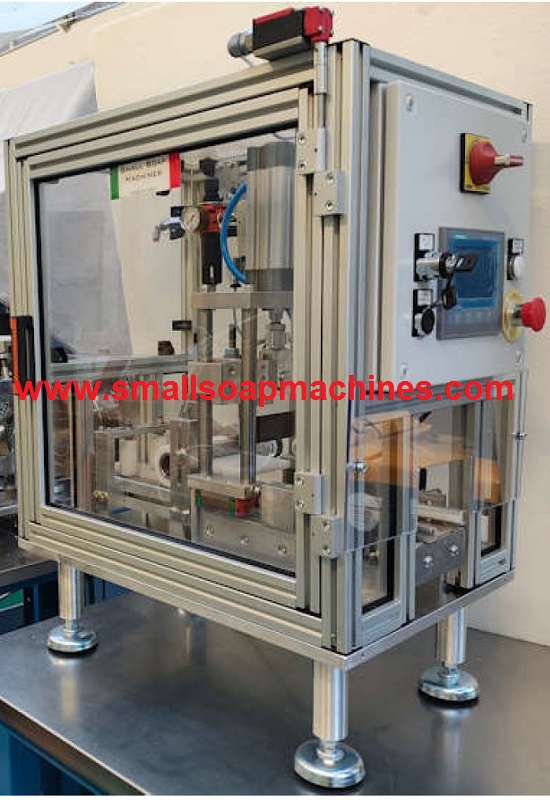

SOAP CUTTER EPC-60

• Capacity: up to 60 cuts per minute.
• adjustable cutting length: from 10 to 500 mm.
• maximum bar thickness: 50 mm.
• maximum bar width: 70 mm.
• PLC and Touch Panel
• Adjustable Height.
• Safety cover with micro-switch
• Lockable wheels with integrated feet.
• Basement in Stainless Steel.
• Teflon coated blade.
• Air Consumption: 50 litres/min.
• Weight: 90 Kg.
• Installed Power: 400 Watt.

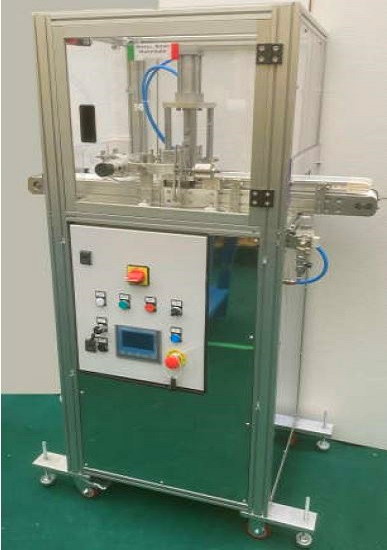

SOAP CUTTER EPC-120

• Capacity: up to 120 cuts per minute.
• adjustable cutting length: from 8 to 500 mm.
• maximum bar thickness: 50 mm.
• maximum bar width: 70 mm.
• PLC and Touch Panel
• Adjustable Height.
• Safety cover with micro-switch
• Lockable wheels with integrated feet.
• Basement in Stainless Steel.

• Conveyor with adjustable speed

• Teflon coated blade.
• Air Consumption: 100 litres/min.
• Weight: 180 Kg.
• Installed Power: 900 Watt.
