Soap Packaging - Small Soap Machines

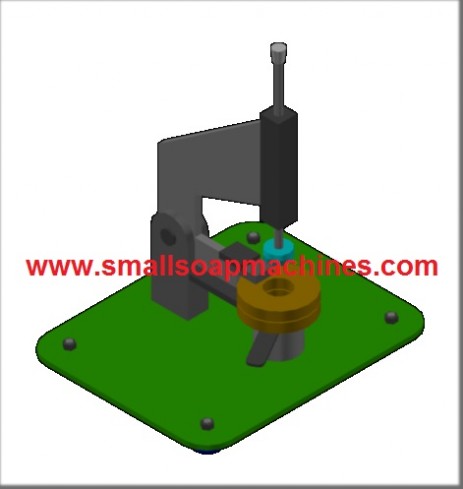

Soap Pleat Wrapper PW-10
Description: The Manual Soap Pleat Wrapper PW-10 is studied to wrap round soap bars, starting from pre-cut round paper sheets. One strength of this "easy-to-use" Pleat Wrapper is the possibility to vary the packing material: paper or transparent film.
The PW-10 is supplied with a Size Group as per Customer soap specifications. The changing of Soap Diameter, requires the proper Size Group that we can supply separately.
The PW-10 is supplied with a Size Group as per Customer soap specifications. The changing of Soap Diameter, requires the proper Size Group that we can supply separately.
TECHNICAL SPECIFICATIONS PW-10:
Capacity: around 7-10 soap bars per minute
Manufacture in stainless steel and carbon steel
Wrapping Material: paper or plastic film
Soap Diameter: from 40 to 75 mm (bigger Diameter on request)
Soap Thickness: from 10 to 50 mm
Capacity: around 7-10 soap bars per minute
Manufacture in stainless steel and carbon steel
Wrapping Material: paper or plastic film
Soap Diameter: from 40 to 75 mm (bigger Diameter on request)
Soap Thickness: from 10 to 50 mm
OPTIONAL: Size Group, composed by Bottom Folder, Lower Folder, Pusher and Soap Elevator.

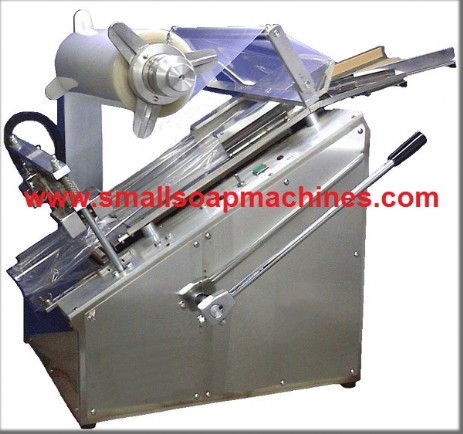

Soap Flow Wrapper
Description: The small Soap Flow Wrapper DS-20 is studied for small scale soap line. It is possible to wrap up to 20 soap bars per minute, using neutral plastic materials, or also printed plastic material, by means of a photocell (Optional) able to read the “black tack” present on the plastic material reel. The plastic packaging material is Polypropylene with variable thickness from 20 to 45 micron.
TECHNICAL SPECIFICATIONS DS-20:
Capacity: up to 20 soap bars per minute
Stainless steel parts in contact with the product
Longitudinal sealing: cantilevered pulling wheels + cantilevered sealing wheels
Transversal sealing: progressive cut with inclined cut on the knives with a width of 200 mm.
Installed power: 1,8 kW (2,4 HP)
Capacity: up to 20 soap bars per minute
Stainless steel parts in contact with the product
Longitudinal sealing: cantilevered pulling wheels + cantilevered sealing wheels
Transversal sealing: progressive cut with inclined cut on the knives with a width of 200 mm.
Installed power: 1,8 kW (2,4 HP)
