Small Saponification Plant

We developed our Small Soap Plant to produce soap flakes/soap noodles, starting from oils and caustic soda solution.  The soap is produced with Hot Process, also known as semi-boiled soap.

The main strength of this Small Saponification Plant is the ability to produce small batches of soap, from 20 up to 150 Kilos, in form of soap blocks that are successively transformed is soap noodles/flakes by means of the Soap Flaker.
Our Small Soap Lines was developed to work with soap noodles available on the market, but thanks to our small saponification plant it is possible to produce your own soap flakes.
The complete soap plant is composed by the Soap Crutcher and by the Soap Flaker.

Video of Soap Plant ...wait few seconds...
Video Small Saponification Plant

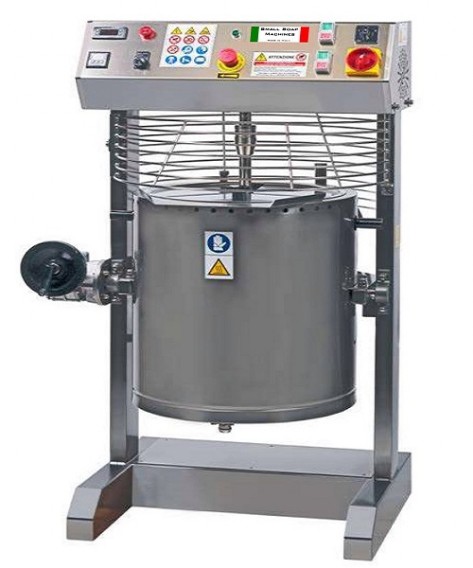

Soap Crutcher SC-60
TECHNICAL SPECIFICATIONS:
  • Tank Volume: 60 liters
  • Soap Batch up to: 50 Kg
  • Installed Motor Power: 0,75 kW
  • Installed Heaters: 6 kW
  • Made in stainless steel
  • Industrial Gearbox with motor
  • Electrical panel with push buttons
  • Heating Control system with adjustable temperature by a thermoregulator
  • Safety cover with microswitch
  • Reverse tank discharge
  • Electrical supply: 230 or 400 Volts


Small Soap Crutcher
Small Saponification Plant

Soap Crutcher SC-120
TECHNICAL SPECIFICATIONS:
  • Tank Volume: 120 liters
  • Soap Batch up to: 100 Kg
  • Installed Motor Power: 2,2 kW
  • Installed Heaters: 15 kW
  • Made in stainless steel
  • Industrial Gearbox with motor
  • Electrical panel with push buttons
  • Heating Control system with adjustable temperature by a thermoregulator
  • Safety cover with microswitch
  • Reverse tank discharge
  • Electrical supply: 230 or 400 Volts

Soap Crutcher SC-200
TECHNICAL SPECIFICATIONS:
  • Tank Volume: 200 liters
  • Soap Batch up to: 160 Kg
  • Installed Motor Power: 3 kW
  • Installed Heaters: 18 kW
  • Made in stainless steel
  • Industrial Gearbox with motor
  • Electrical panel with push buttons
  • Heating Control system with adjustable temperature by a thermoregulator
  • Safety cover with microswitch
  • Reverse tank discharge
  • Electrical supply: 230 or 400 Volts

Small Saponification Plant

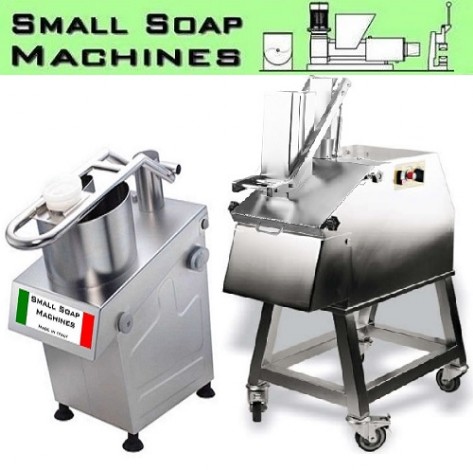

Soap Flaker SF-100 SF-150
TECHNICAL SPECIFICATIONS:
  • Capacity: up to 25 Kg/hour (100 kg/our) of soap flakes
  • Installed Motor Power: 0,37 kW - 0,60 KW
  • Made in stainless steel
  • Industrial Gearbox with motor
  • Electrical panel with push buttons
  • Safety microswitch
  • Electrical supply: 230 or 400 Volts




Soap Flaking Machine
Small Flakes
